Oxygen Generators
Cutting-Edge AirSep Oxygen Generators Deliver Oxygen Purity up to 99% to Fulfill a Wide Range of Low to High-Pressure Requirements
Specialty Gas Canada is a premier provider of cutting-edge oxygen generators for a wide range of applications. Our commitment to delivering top-notch products and services has led us to partner with AirSep, a renowned name in the field of oxygen solutions. By joining forces with AirSep, we aim to offer our valued customers in Canada access to the finest oxygen generation systems available in the market.
At Specialty Gas Canada, we understand the importance of reliability and efficiency in oxygen generation. Our partnership with AirSep allows us to combine our expertise and resources to ensure that our customers receive the best-in-class oxygen generators that meet the highest industry standards. Together, we strive to cater to the diverse needs of various industries and applications, ensuring an uninterrupted supply of oxygen to fuel their operations.

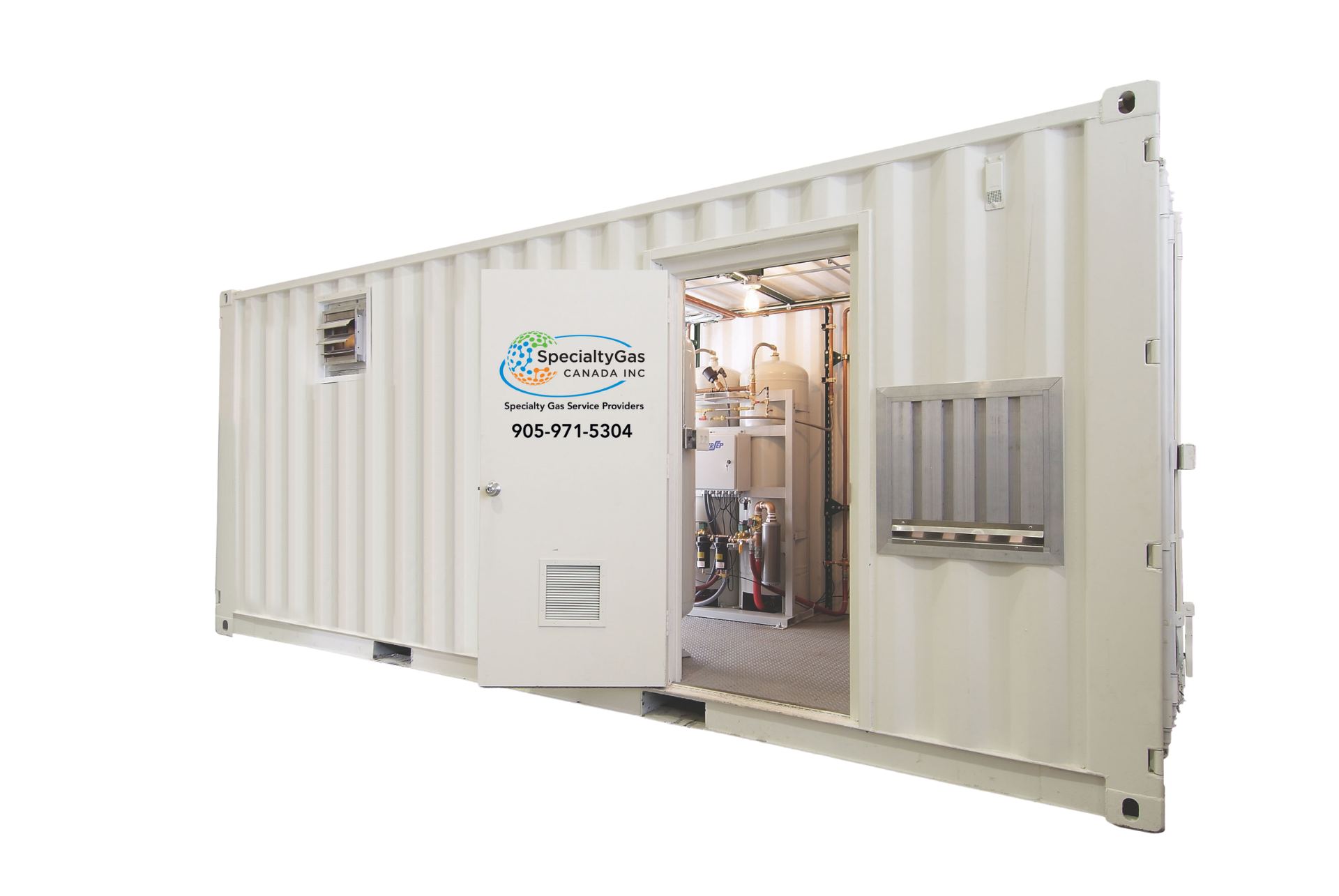

Self-Contained Generators
AirSep presents an array of exclusive applications with their fully autonomous oxygen generators, featuring built-in air compressors. With the exclusion of the Centrox model, these generators necessitate no elaborate setup. Merely link the oxygen outlet to your oxygen distribution network and plug the power cord into a properly grounded electrical socket. Activate the unit, and you can easily adjust the desired oxygen flow to cater to your needs.
| Model | SCFH* | Nm3/Hr* | SLPM* | psig | kPa | barg |
|---|---|---|---|---|---|---|

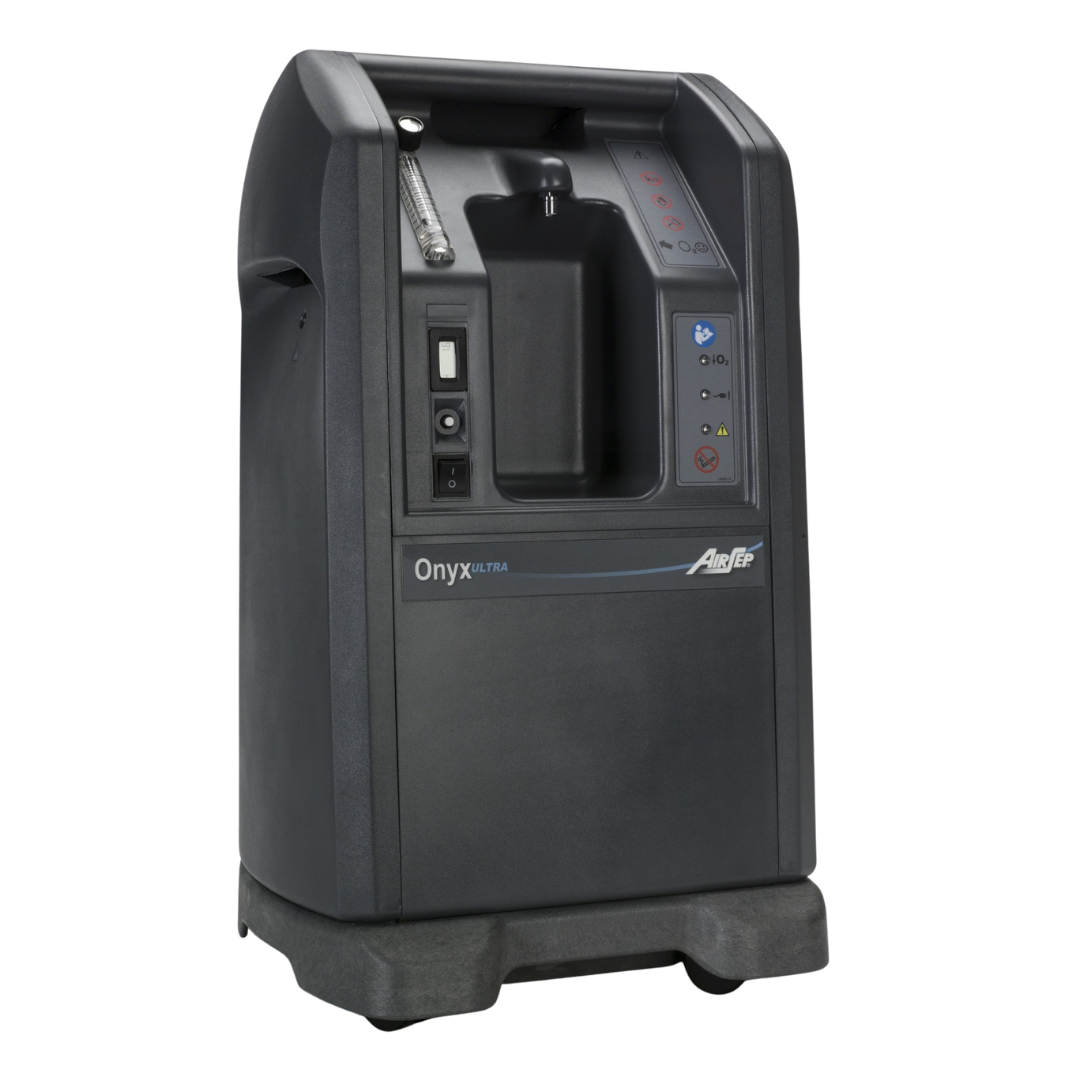

| Onyx | 12 | 0.31 | 6 | 9 | 62 | 0.62 |
| Onyx Ultra | 21 | 0.55 | 10 | 20 | 138 | 1.37 |
| Topaz | 12 | 0.31 | 6 | 9 | 62 | 0.62 |
| Topaz Ultra | 21 | 0.55 | 10 | 20 | 138 | 1.37 |
| Regalia | 21 | 0.55 | 10 | 7 | 48 | 0.48 |
| Reliant | 17 | 0.44 | 8 | 50 | 345 | 3.5 |
| Centrox | 32 | 0.84 | 15 | 50 | 345 | 3.5 |
*SCF (Standard cubic foot) gas measured at 1 atmosphere and 70°F.
*Nm3 (Normal cubic meter) gas measured at 1 atmosphere and 0°C
*SLPM (Standard liters per minute) gas measured at 1 atmosphere and 21ºC.

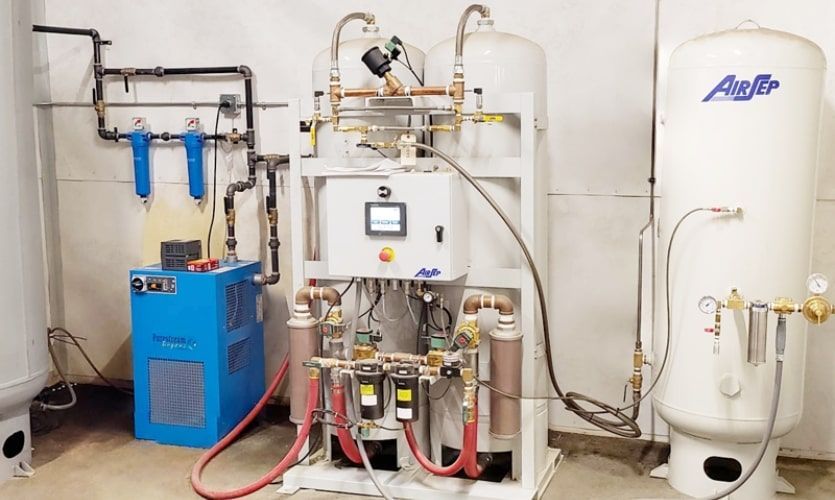

Standard Generators
AirSep Alpha-Series Oxygen Generators are designed to deliver a wide range of oxygen output, ranging from 8 to 5,500 cubic feet per hour, while ensuring up to 95% oxygen concentration. These robust devices can cater to a diverse array of applications, ensuring a steady oxygen supply whenever needed.
| Model | SCFH* | Nm3/Hr* | SLPM* | psig | kPa | barg |
|---|---|---|---|---|---|---|
| ATF-8 | 8 | 0.21 | 3.8 | 9 | 62 | 0.62 |
| ATF-12 | 12 | 0.31 | 5.7 | 9 | 62 | 0.62 |
| ATF-15 | 15 | 0.39 | 7.1 | 7 | 48 | 0.48 |
| ATF-23 | 23 | 0.60 | 10.8 | 7 | 48 | 0.48 |
| ATF-25 | 25 | 0.65 | 12 | 14 | 97 | 0.96 |
| ATF-32 | 32 | 0.84 | 15 | 14 | 97 | 0.96 |
| AS-A | 20-25 | 0.53-0.66 | 9-11 | 45-50 | 310-345 | 3.0-3.4 |
| AS-B | 45-55 | 1.18-1.45 | 21-25 | 45-55 | 310-379 | 3.0-3.7 |
| AS-D | 80-90 | 2.10-2.37 | 37-42 | 45-55 | 310-379 | 3.0-3.7 |
| AS-D+ | 80-100 | 2.10-2.63 | 37-47 | 45-65 | 310-448 | 3.0-4.4 |
| AS-E | 160-195 | 4.21-5.13 | 75-92 | 45-65 | 310-448 | 3.0-4.4 |
| AS-G | 250-320 | 6.57-8.41 | 117-151 | 45-65 | 310-448 | 3.0-4.4 |
| AS-J | 450-600 | 11.83-15.77 | 212-283 | 45-65 | 310-448 | 3.0-4.4 |
| AS-K | 750-900 | 19.72-23.66 | 353-424 | 45-65 | 310-448 | 3.0-4.4 |
| AS-L | 1,000-1,300 | 26.29-34.18 | 471-613 | 45-65 | 310-448 | 3.0-4.4 |
| AS-N | 1,500-1,800 | 39.43-47.32 | 707-849 | 45-65 | 310-448 | 3.0-4.4 |
| AS-P | 2,000-2,300 | 52.58-60.46 | 943-1,085 | 45-65 | 310-448 | 3.0-4.4 |
| AS-Q | 2,500-2,800 | 65.72-73.61 | 1,179-1,321 | 45-65 | 310-448 | 3.0-4.4 |
| AS-R | 3,000-3,700 | 78.86-97.27 | 1,415-1,746 | 45-65 | 310-448 | 3.0-4.4 |
| AS-W | 4,000-4,600 | 105.15-120.93 | 1,887-2,170 | 45-65 | 310-448 | 3.0-4.4 |
| AS-Z | 5,000-5,500 | 131.45-144.59 | 2,359-2,595 | 45-65 | 310-448 | 3.0-4.4 |
Note: For Alpha Series Standard Generator models, specify oxygen flow and pressure at time of order.
*SCF (Standard cubic foot) gas measured at 1 atmosphere and 70°F.
*Nm3 (Normal cubic meter) gas measured at 1 atmosphere and 0°C.
*SLPM (Standard liters per minute) gas measured at 1 atmosphere and 21ºC.

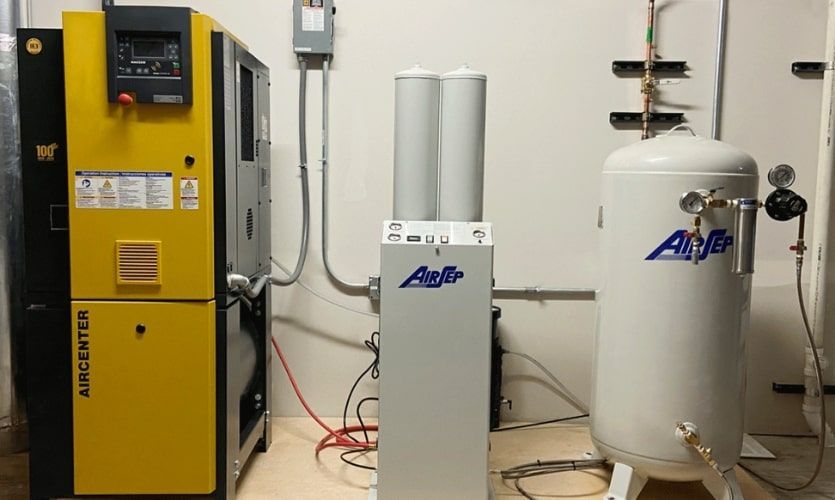

Mini Pack Generators
Tailored for use in applications with fixed flow and pressure properties, the compact oxygen receiver characteristic of our Mini Pack Oxygen Generators provides expedited initialization and occupies notably less space compared to similar setups employing a conventional, detached receiver. Effortlessly link the device's inlet to a suitable compressed air source, connect the oxygen outlet to the intended application, and plug in the power cord to a suitable electrical supply.
| Model | SCFH* | Nm3/Hr* | SLPM | psig | kPa | barg |
|---|---|---|---|---|---|---|
| AS-A Mini Pack | 20-25 | 0-53-0.66 | 9-11 | 45-50 | 310-345 | 3.0-3.4 |
| AS-B Mini Pack | 45-55 | 1.18-1.45 | 21-25 | 45-55 | 310-379 | 3.0-3.4 |
| AS-D Mini Pack | 80-90 | 2.10-2.37 | 37-42 | 45-55 | 310-379 | 3.0-3.4 |
*SCF (Standard cubic foot) gas measured at 1 atmosphere and 70°F.
*Nm3 (Normal cubic meter) gas measured at 1 atmosphere and 0°C.
*SLPM (Standard liters per minute) gas measured at 1 atmosphere and 21ºC.

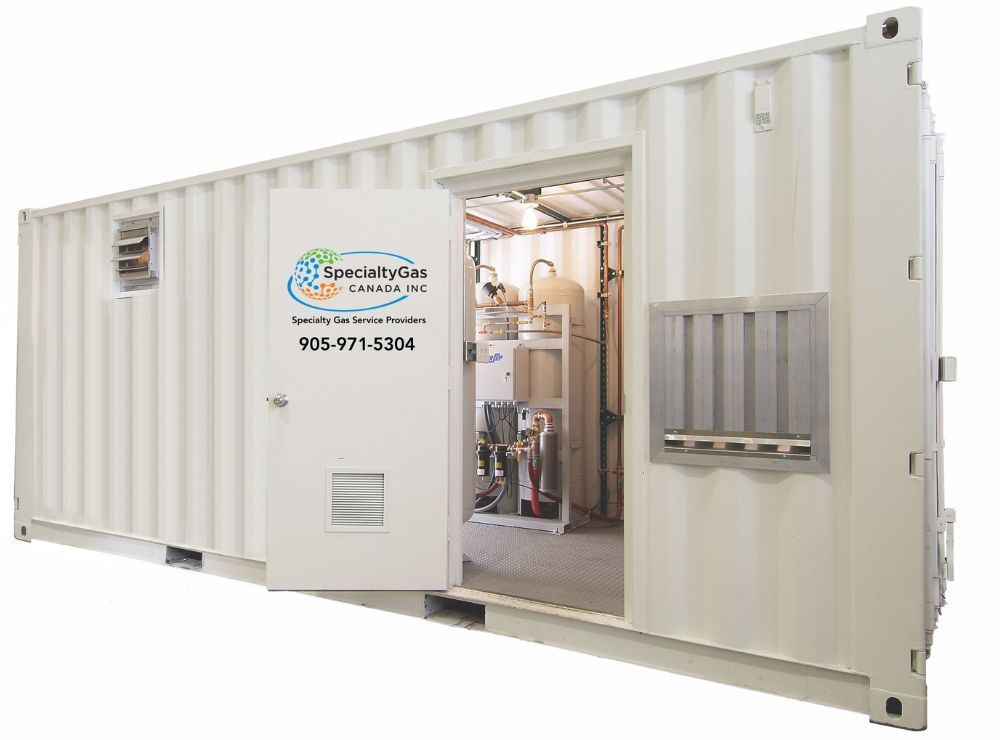

Standard or Custom-Designed Systems
Standard oxygen plants are available in two main designs: low pressure power-optimized and high pressure cost-optimized configurations. The low pressure plants can produce around 93% oxygen at a maximum of 15 psig (105 kPa or 1.03 barg). On the other hand, high pressure plants can generate the same oxygen concentration at up to 65 psig (448 kPa or 3.0 barg) without utilizing an oxygen compressor.
For more specialized requirements, custom-designed oxygen plants can offer oxygen concentrations ranging from 70% to 99%. There's also the option of incorporating an oxygen booster, which allows for the delivery of oxygen at pressures as high as 3,000 psig (20,685 kPa).

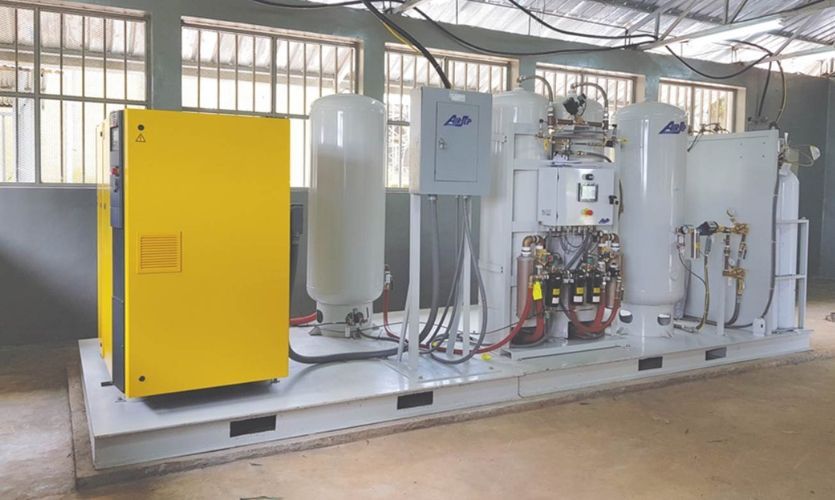

Cylinder Refilling Systems
AirSep offers an array of Oxygen Cylinder Refilling Systems to meet diverse customer demands. These turnkey plants, supporting capacities ranging from 8 to 100s of cylinders daily, empower users to fill oxygen cylinders for various purposes or distribution. The comprehensive package includes essential components like a feed air compressor, feed air dryer, oxygen generator, oxygen booster, and a cylinder filling rack. The oxygen compressor efficiently delivers oxygen at pressures up to 2,200 psig (15,169 kPa or 151.6 barg) to a high-pressure manifold, facilitating the simultaneous filling of up to 10 cylinders. These automated cylinder refilling plants strictly adhere to the standards of the United States and European Pharmacopoeia Oxygen 93 Percent (93% ±3%) Monograph. To cater to specific needs, customers can opt for an optional high purity module, which elevates oxygen concentration to an impressive 99% ±.5%.
| Model | Capacity - Cylinders/day (Standard K Cyclinders [244 SCF]) |
|---|---|
| AS-D-CR | 8 |
| AS-G-CR | 20 |
| AS-J-CR | 40 |
| AS-K-CR | 60 |
| AS-L-CR | 100 |
Trust in Specialty Gas Canada
At Specialty Gas Canada, we take pride in offering superior oxygen generator systems and personalized customer service. Trust in our expertise and experience to provide you with the best-in-class oxygen generation solutions, tailored to meet your specific industrial needs. Whether you are looking for self-contained generators, standard systems, or custom-designed setups, we are here to be your reliable partner for all your oxygen generation requirements. Choose Specialty Gas Canada for cutting-edge technology, outstanding performance, and unmatched efficiency in industrial oxygen generation.
