MNGS 4.0 Mobile Nitrogen Generation System
Take control of your nitrogen gas supply wherever the job takes you.
We built the MNGS 4.0 mobile nitrogen generator, so your team never has to wait on a delivery, chase down gas cylinders, or plan a job around someone else's schedule. It's a compact, Canadian-engineered mobile nitrogen generation system that generates high-purity nitrogen gas on demand: on the ramp, in the field, or at a remote industrial site: no delays, no logistics headaches, just dependable nitrogen wherever you need it.
Why Mobile Nitrogen Generation Matters
Field work stalls for one simple reason: nitrogen isn't where you need it. Bulk deliveries are expensive and unpredictable on remote or temporary sites. Gas cylinder logistics add storage challenges, safety concerns, and coordination overhead. When purging, pressure testing, leak testing, tire inflation, high-pressure cylinder filling, or gas shielding are critical to the job, that uncertainty turns into downtime you can't afford.
How would your operations change if your nitrogen gas supply moved with you? What would it mean for your team to generate exactly what you need, exactly where you need it, without depending on anyone else's schedule?
That's what the MNGS 4.0 does. It travels with your team and produces high-purity nitrogen gas on demand at the flow rate, pressure, and nitrogen purity your application requires, at a fraction of the cost of traditional supply.
What We Deliver with the MNGS 4.0
We built this fourth-generation mobile nitrogen generator around three things: independence, performance, and real-world practicality.
≥ 99% purity:
Forget about purity inconsistencies from batch deliveries. Our nitrogen generation system draws from ambient air and produces high-purity nitrogen gas at ≥99% nitrogen purity consistently, every time.
Up to 5,000 PSI outlet pressure:
Our integrated high-pressure booster, certified cylinder pack, high-pressure harness assembly, and adjustable pressure regulator handle the full range of industrial and field applications without the need for a separate nitrogen pumper.

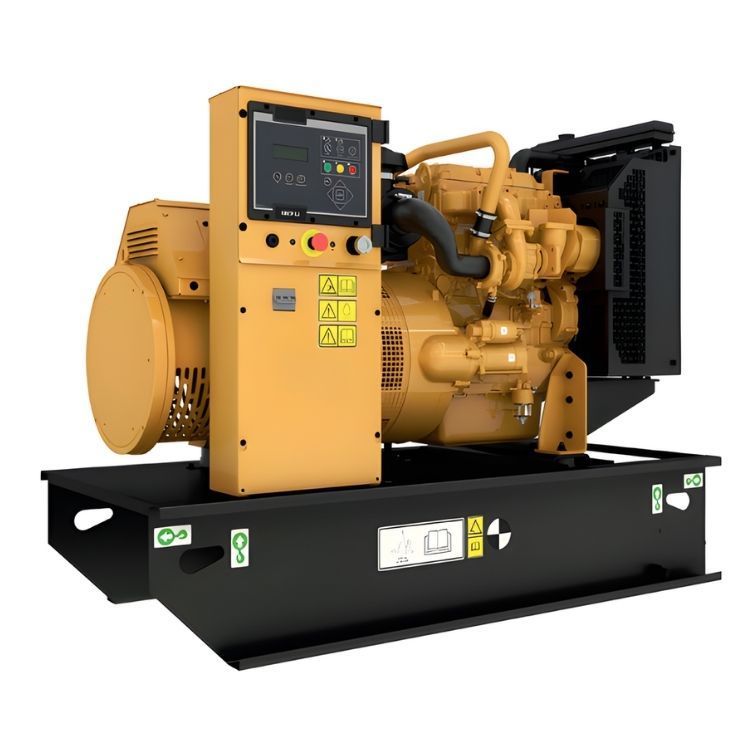

Dual power:
We don't lock you into one power source. Run from the onboard final tier 4 diesel engine generator when you're fully remote, or connect to external hydro power when site power is available. Pre-select from 600 Volts, or 480 Volts three-phase supply to match your site requirements. You cut fuel consumption and noise on industrial and urban sites while keeping complete autonomy on isolated projects.
A best-in-class compressed air system:
At the heart of the MNGS 4.0 is an isentropically efficient compressed air system rated to 160 PSI, supported by a four-stage filtration train and high-performance air dryer. It provides clean, dry inlet air for precision nitrogen generation and can also serve additional pneumatic operations on site.
PSA nitrogen generation technology:
The MNGS 4.0 uses Pressure Swing Adsorption (PSA) technology with Snowstorm-filled Carbon Molecular Sieve (CMS) to separate nitrogen molecules from ambient air. Achieving superior adsorption efficiency and purity stability. This proven approach to gas separation and gas conditioning ensures consistent, reliable nitrogen purity, day after day.
One integrated system:
We combine compressed air, air treatment, PSA nitrogen generation, boosting, storage, and delivery in a single unit. Lower operating costs over the life of the asset.
Built for the extreme field conditions:
Our fully enclosed design protects equipment, controls noise, and keeps your operations running in harsh weather. Interior and panel lighting support safe work during night shifts and in low-visibility environments.
Performance Specifications
| Paramater | Specification |
|---|---|
| Nitrogen outlet purity | ≥ 99% |
| Nitrogen class | Class 1 Nitrogen |
| Nitrogen outlet flow rate | ≥ 15 SCFM |
| Booster outlet pressure | Up to 5,000 PSI |
| Compressed air outlet flow | ≥ 15 SCFM |
| Compressed air outlet pressure | Up to 160 PSI |
Industries and Applications We Support
Aviation and Aerospace
Aircraft tire inflation, nitrogen gas servicing for onboard systems, and ramp-side ground support.
Oil, Gas and Energy
Pipeline purging, pressure testing, and inerting and blanketing of critical systems.
Industrial Maintenance and Manufacturing
Leak testing, process equipment purging, and mobile nitrogen gas generation for laser cutting operations.
Standard Features and Options
Every unit we ship is ready for serious field work. We can tailor the mounting, power configuration, and cylinder setup to fit your fleet and site procedures.
| Feature | Standard | Optional |
|---|---|---|
| Nitrogen Generator with HMI & Oxygen Sensor | ✓ | |
| Dual Power Capability | ✓ | |
| High-Pressure Booster (5,000 PSI) | ✓ | |
| Panel Lights & Ceiling Lights for Night Operation | ✓ | |
| Fully Enclosed System | ✓ | |
| Skid-Mounted Configuration | ✓ | |
| Backpack System for Field Cylinder Use | ✓ | |
| Cylinder Pack Size / Configuration | ✓ |
Intelligent Controls That Work in the Field

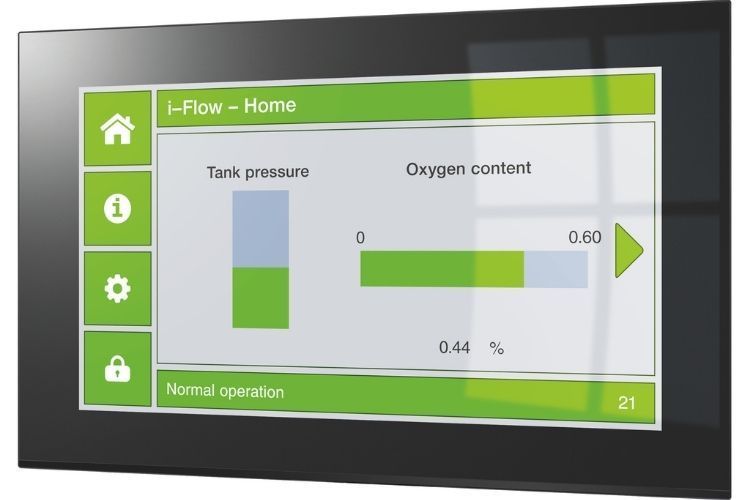

Our HMI touchscreen offers real-time nitrogen purity, oxygen content, system pressures, flow rate, alarm notifications, and maintenance indicators. Your operators always know exactly what the nitrogen generation system is doing, with no guesswork.

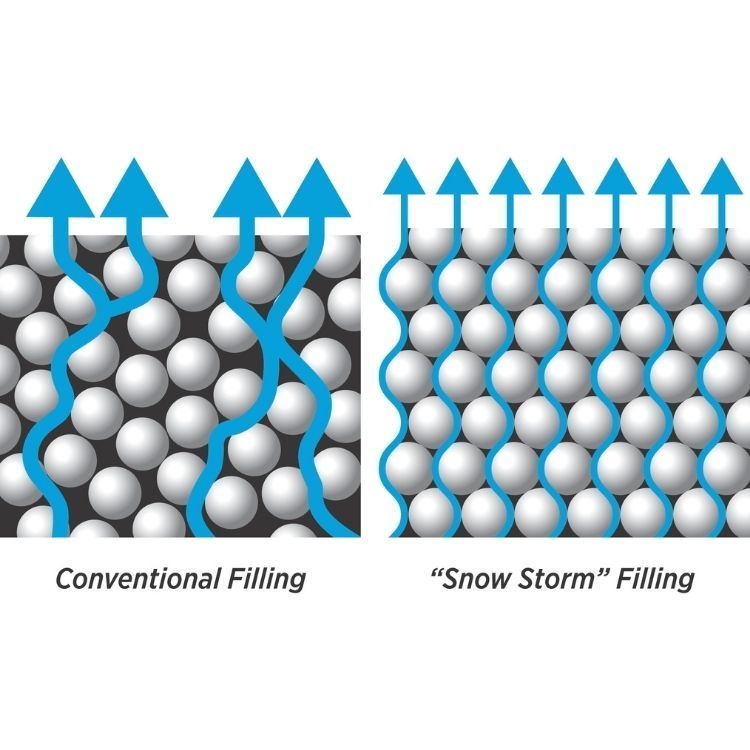

The nitrogen generator uses Snowstorm-filled Carbon Molecular Sieve (CMS) technology, chosen for its superior adsorption efficiency and purity stability. We specify components that simply run as expected, because when you're in a remote location, that reliability isn't optional.
Safety and Compliance You Can Count On
Specialty Gas Canada is a 100% Canadian-owned company. Every MNGS 4.0 mobile nitrogen generator is designed and built in Canada.
We engineer the MNGS 4.0 to meet the standards of regulated industries and Canadian requirements, including Transport Canada, CSA, TSSA, and CRN for all pressure components. It's the same rigorous approach we bring to permanent on-site nitrogen systems across food, healthcare, pharmaceutical, and manufacturing environments, now in a mobile platform.
How to Get the MNGS 4.0
Purchase
Best economics for field teams with regular nitrogen needs. Own the asset, produce nitrogen at a fraction of traditional supply costs.
Lease
Predictable monthly costs with flexible financing, so you can free up capital while still gaining full operational independence.
Long-Term Rental
Deploy the technology on extended or seasonal projects without committing to ownership from day one.
Let’s Make It Work for You
Portable nitrogen generators are more than just tools; they’re transformative solutions for dynamic industries. Whether you’re in the Defence Sector, Aviation and Aerospace, Oil, Gas and Energy, or Utilities and Infrastructure, Specialty Gas has the expertise to provide exactly what you need.
Take the next step toward more efficient, reliable, and sustainable operations. Reach out to Specialty Gas today and explore what portable nitrogen generators can do for your business.
